WX118 50mm Long Shaft Potentiometer

Category: WX118

Long Shaft Potentiometer WX118 Electrical Characteristics Range of nominal resistance 5Ω~22KΩ Resistance tolerance ±5% Terminal resistance ≤±0.2%R or 5Ω Peak Noise ≤100Ω Insulation resistance ≥ 200MΩ (100V AC) Withstand voltage 500V (DC or AC peak value) Electrical angle 258° ± 5 ° Rated power 1W ( 300V 70 °C ) Environment Characteristics Temperature range -55°C~+125°C TCR ±100×10-6/°C Collision (390m/S2, 4000 times) ΔR≤±1%R Vibration (10-500HZ, 0.75mm... FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM

Enquiry

Product Description

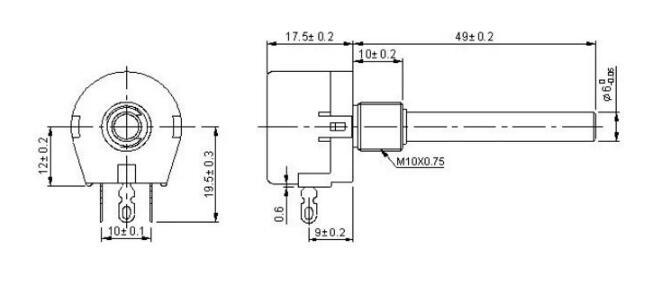

Long Shaft Potentiometer WX118
Electrical Characteristics Range of nominal resistance 5Ω~22KΩ
Resistance tolerance  ±5%
Terminal resistance ≤±0.2%R or 5Ω
Peak Noise ≤100Ω
Insulation resistance ≥ 200MΩ (100V AC)
Withstand voltage 500V (DC or AC peak value)
Electrical angle 258° ± 5 °
Rated power 1W ( 300V 70 °C )
Environment Characteristics Temperature range  -55°C~+125°C
TCR ±100×10-6/°C
Collision (390m/S2, 4000 times) ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h) ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) ΔR±2%R, ΔUab/Uac±2%R
Climate category (IEC68-2-2) ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (2W, 1000h) ΔR≤± 3%R
Mechanical endurance (1000 cycles) ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h) ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m
Physical Characteristics Total mechanical travel 300° ± 5 °
Rotational torque  2-10mN.m
Standard package 25 pcs /box
