3323P Trimmer

Category: 3323

Cermet Trimmer Potentiometer 3323P Electrical Characteristics Standard Resistance Range 10Ω~5MΩ Resistance Tolerance ±10% ±5% (customization) Terminal Resistance ≤1%R or 2Ω Insulation Resistance R1≥ 1GΩ Rated Power 0.5W ( 300V max) Withstand Voltage 101.3kPa 600V 8.5kPa 315V Contact Resistance Variation (CRV) ≤3%R or 3Ω Effective Electrical Travel 210°±10° Environment Characteristics Temperature Range -55°C~+125°C Temperature Coefficient ±250, ±100ppm/°C Coll... FOB Price:US $0.01 - 99/ Piece. Min.Order Quantity:1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability:100000000 Pieces per Month. Production Time:5-10 workdays for regular orders; 1-5 workdays for samples order. Port:Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc. Payment Terms:Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc. Services:ODM, OEM

Enquiry

Product Description

Cermet Trimmer Potentiometer 3323P
Electrical Characteristics Standard Resistance Range 10Ω~5MΩ
Resistance Tolerance ±10%   ±5% (customization)
Terminal Resistance 1%R or 2Ω
Insulation Resistance R1 1GΩ
Rated Power 0.5W ( 300V max)
Withstand Voltage 101.3kPa 600V  8.5kPa 315V
Contact Resistance Variation (CRV) 3%R or 3Ω
Effective Electrical Travel 210°±10°
Environment Characteristics Temperature Range -55°C~+125°C
Temperature  Coefficient ±250, ±100ppm/°C
Collision (390m/S^2, 4000 times) ΔR≤±1%R
Vibration (10-2000HZ, 0.75mm or 98m/S^2 6h) ΔR±1%R, ΔUab/Uac±2%R
Temperature Variation ΔR±2%R,ΔUab/Uac±1%R
Climate Category ΔR± 3%R, R1100MΩ
Electrical Endurance (70°C,0.5W,1000h) ΔR± 3%R
Mechanical Endurance (200 cycles) ΔR± 3%R
Steady Damp-Heat ΔR± 3%R, R1100MΩ
Physical Characteristics Total Mechanical Travel 250°±10°
Starting Torque 20mN.m
Clutch Torque 50mN.m

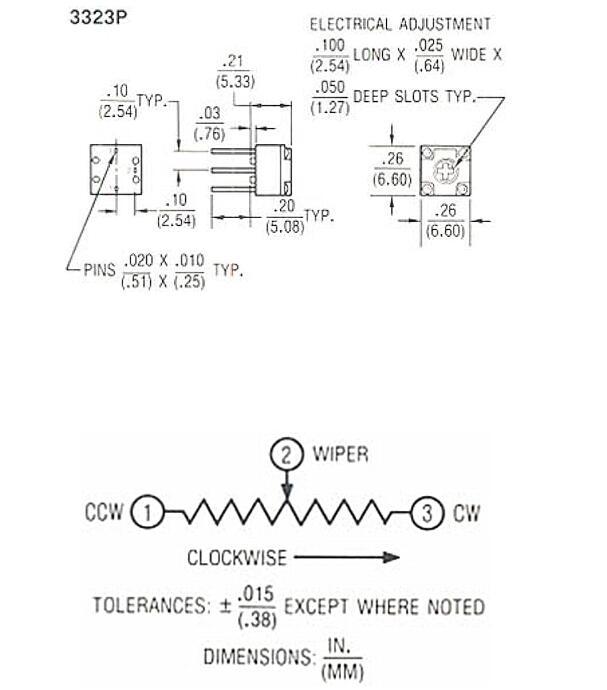

3323P





3323P
