WH148 potentiometer

Category: WH148

Carbon Film Potentiometer WH148 Electrical Characteristics Total Resistance 100Ω-2.2MΩ Total Resistance Tolerance ±10% ±20% Max. Operation Voltage 250VAC Rated Power 0.2W Slider Noise ≤47mV Insulation Resistance ≥100MΩ at DC 500V Resistance Taper B Taper Mechanical Characteristics Total Rotational Angle 300°±5° Rotational Torque 20~250gf.cm Rotational Life ≥10,000 cycles Stop Torque ≥6kgf.cm Temperature Range -10℃~70℃ FOB Price: US $0.01 - 99/ Piece Min.Order Quantity: 1000 Pieces for Trimming Pot; 100 Pieces for Wire-wound Pot; and etc. Supply Ability: 100000000 Pieces per Month Production Time: 5-10 workdays for regular orders; 1-5 workdays for samples order. Port: Shenzhen, Shanghai, Ningbo, Guangzhou, Chengdu and etc Payment Terms: Western Union, Visa/Master Card, T/T, Paypal, e-checking and etc Services: ODM, OEM


Product Description

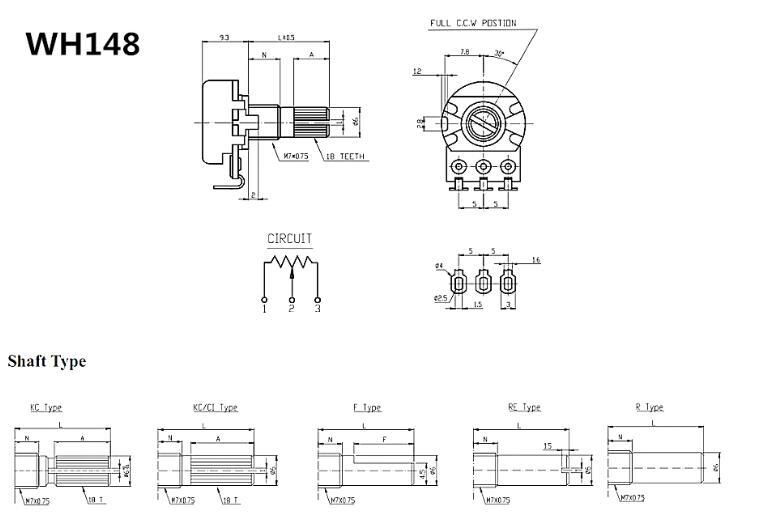

Carbon Film Potentiometer WH148
Electrical Characteristics Total Resistance 100Ω-2.2MΩ
Total Resistance Tolerance ±10% ±20%
Max. Operation Voltage 250VAC
Rated Power 0.2W
Slider Noise 47mV
Insulation Resistance 100MΩ at DC 500V
Resistance Taper B Taper
Mechanical  Characteristics Total Rotational Angle 300°±5°
Rotational Torque 20~250gf.cm
Rotational Life 10,000 cycles
Stop Torque 6kgf.cm
Temperature Range -10~70
